Product Details:
|
Production Name: | Tubular UHT Sterilization | Core Components: | Plc, Motor, Pump |
---|---|---|---|
Capacity: | 500-20000 Liters/hour | Voltage: | 220V/380V |
Sterilizing Temp: | Customized Based On Production Capacity | After Warranty Service: | Online Support |
Region: | Shanghai China | Automatic Grade: | Automatic |
Dimension: | Customized | Application: | Dairy, Juice, Beverage |
Warranty: | 1 Year | ||
Highlight: | High Performance uht sterilizer,Tubular uht sterilizer,Long Lasting uht sterilizer |
Download to learn more
tubular sterilizer production introduce.pdf
Click to learn more
https://www.youtube.com/watch?v=6MGcJ049e6o&list=PLMqO7-CTBpXtUf9nzvIHNa66uz3jZ9MOI&index=6

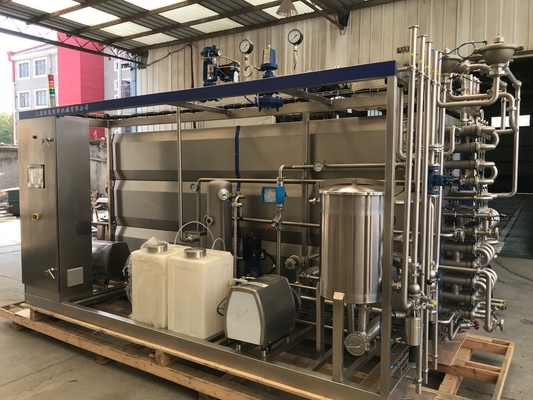

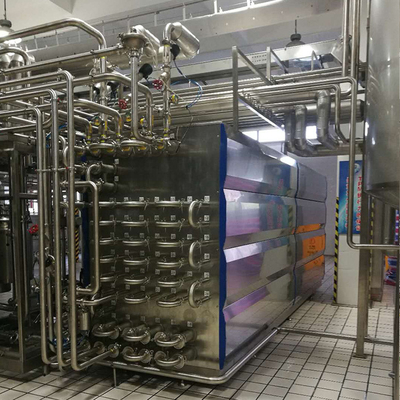

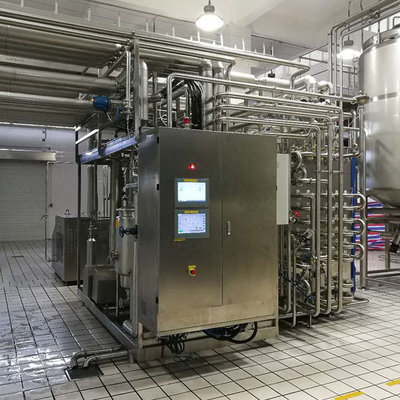

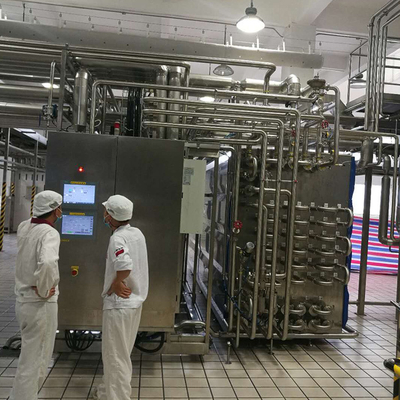

High performance custom tubular UHT sterilization system
Tubular UHT Sterilization Product overview
Our high-performance custom tubular UHT sterilization systems are designed for the efficient and safe sterilization of processed milk, juice and yogurt. This advanced technology ensures your products are processed at optimal temperatures, extending shelf life while retaining the highest quality and nutritional value.
Tubular UHT Sterilization Main features:
Advanced Sterilization Technology: Our UHT (ultra-high temperature) sterilization systems use high temperatures to destroy microorganisms in a very short period of time without compromising product integrity. This ensures sterile products and longer shelf life.
Customizable Design: Customize the sterilization process to meet your specific production needs. Our systems can be customized to handle a variety of flow rates, temperatures and retention times, ensuring optimal performance for different types of liquid products.

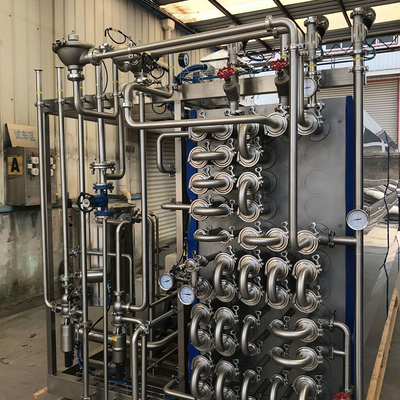

Efficient heat exchange: The tubular design maximizes heat exchange efficiency, reduces energy consumption, and improves the overall efficiency of the sterilization process.
Precise Control: Our tubular UHT sterilizations feature state-of-the-art temperature and pressure control systems that guarantee precise and consistent sterilization, minimizing the risk of product spoilage and ensuring safety.
Durable Construction: Our systems are constructed from high-quality stainless steel for superior durability and corrosion resistance, ensuring long-term reliability and easy maintenance.
User-friendly interface: The intuitive control panel makes it easy to operate and monitor the sterilization process. Operators can easily adjust settings and track performance metrics in real time.
Compliance and Safety:tubular UHT sterilization Compliance with international food safety standards and regulations gives you peace of mind that your products are processed safely and in compliance with industry requirements.
Tubular UHT Sterilization application
Typical application | Mango pulp | Coconut water | UHT milk | Fruit juice |
Flow | 1000l/h | 3000l/h | 5000l/h | 8000l/h |
Power | 13 | 11 | 12 | 20 |
Temperature in | 40 | 4 | 4 | 55 |
Sterilizing temperature | 108 | 80/ 140 | 137 | 125 |
Holding time | 120 | 90 /8 | 5 | 15 |
Temperature out | 40 | 10/35 | 25 | 85 |
Note | The flow and temperature could tailor-made as per project demand from 500-20,000L/h |
Tubular UHT Sterilization application:
Milk: Ideal for large-scale production of long-shelf-life milk with consistent quality and safety.
Juice: Great for making juices and vegetable juices that retain flavor and nutrients while extending shelf life.
Yoghurt: Suitable for yogurt production, ensuring the preservation of viable cultures while obtaining a sterile final product.
Tubular UHT Sterilization benefit:
Extended shelf life: Effectively kills harmful bacteria and pathogens, significantly extending product shelf life.
Improve product quality: Preserve the taste, texture and nutritional value of processed products.
Energy efficiency: Optimized heat exchange system reduces energy consumption and operating costs.
Reliable performance: Consistent sterilization processes ensure high product quality and safety.
Why choose us?
Our high-performance custom tubular UHT sterilization systems combine cutting-edge technology with customizable features to meet the specific needs of your production line. With a focus on quality, efficiency and safety, our systems are designed to deliver exceptional results and support your business growth.
Contact us today to learn more about how our UHT sterilization systems can improve your production processes and ensure the highest quality for processed milk, juice and yogurt.
