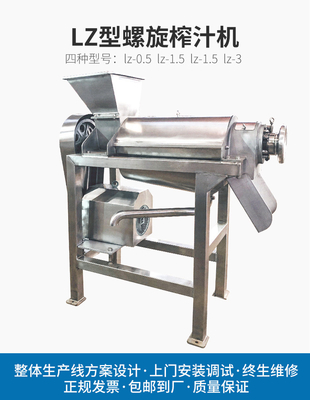

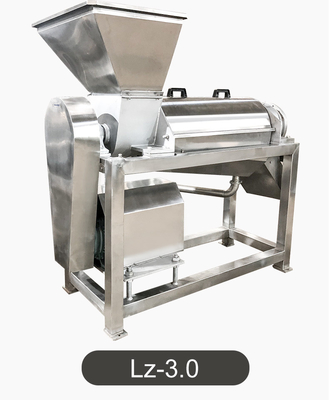

1-3T/Hr SUS304 Industrial Ginger Juicer Machine For Pineapple
1. Descriptions
screw juice extractor, operates using a relatively straightforward but highly effective mechanism to extract juice from fruits, vegetables, and other produce. consists of hammer, screen, main shaft, body and other parts.
Feeding Produce:
by feeding hopper
Crushing and Grinding:

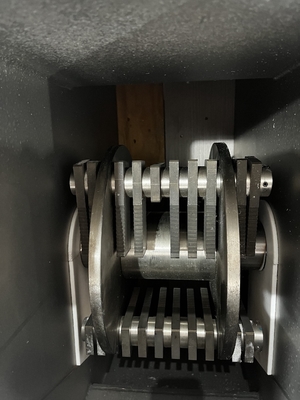

Once inside, the produce encounters a rotating screw.
the knife cut the fruit into small pieces like 3-5mm
then breaked product down the juicing chamber, releasing the juice contained within.
Juice Extraction:
As the produce is ground and crushed, the juice is separated from the pulp.
The screw slowly crushed produce against a static screen or mesh.
The juice passes through small holes in the screen or mesh, while the pulp is pushed further down the auger.
Juice collection:
The juice/pulp is continuously pushed towards the end of the auger.
At the end of the screw, The extracted juice is collected in a container placed beneath the juicer's spout.
This juice is typically free of large pulp pieces but may contain some fine pulp or sediment, depending on the mesh size and the produce used.
Key Features of Industrial Screw Juice Extractors:
Heavy-Duty Construction: Made with durable materials like stainless steel 304 to withstand continuous use.
High Juice Yield: The slow process ensures maximum extraction around 70%
Powerful Motor: Capable of processing large quantities from 500l/h to 3000l/h
Ease of Cleaning: Designed for easy disassembly and cleaning
optional: should match with crusher top improve press function
2. Specifications
| Model |
PLZ-2.5
|
| Production Capacity(t/h) |
1-2 |
| Matched Power (kw) |
15 |
| Size |
1750×640×1960 |
3. Usages
Crusher Juicing Machine is suitable for processing all kinds of berries, pome fruits and various vegetables, and is widely used to extract juice from apples, pears, carrots, pineapples, coconuts, aloes, cacti, etc.
4. More pictures
FAQ
Q: What’s your product name ?
A: Apple 2t/H Crusher Juicing Machine
Q: What’s the ginger juice use for ?
A: ginger juice, ginger granule, instand ginger powder
Q: Why should I choose your company?
A: (1) 24hour/7day after sales service support ;
(2)Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center;
(3)Technical training for customers in our company factory or working site;
(4)Every product will be tested before the delivery.
(5)Delivery on time and excellent after-sales service.
Q: How to solve the service after sale ?
A: Solve any problem online . Supply you English manual book and technical support , maintain and install video to help you solve the problem.
