Fruit Pulp Tomato Paste Jam Milk Aluminum Foil Bag Aseptic Filling Machine Big Capacity Box In Bag

Fruit Pulp Tomato Paste Jam Milk Aluminum Foil Bag Aseptic Filling Machine Big Capacity Box In Bag
Fruit Pulp Tomato Paste Jam Milk Aluminum Foil Bag Aseptic Filling Machine Big Capacity Box In Bag Fruit Pulp Tomato Paste Jam Milk Aluminum Foil Bag Aseptic Filling Machine Big Capacity Box In Bag Fruit Pulp Tomato Paste Jam Milk Aluminum Foil Bag Aseptic Filling Machine Big Capacity Box In Bag Fruit Pulp Tomato Paste Jam Milk Aluminum Foil Bag Aseptic Filling Machine Big Capacity Box In Bag Fruit Pulp Tomato Paste Jam Milk Aluminum Foil Bag Aseptic Filling Machine Big Capacity Box In Bag Fruit Pulp Tomato Paste Jam Milk Aluminum Foil Bag Aseptic Filling Machine Big Capacity Box In Bag

Large Image :  Fruit Pulp Tomato Paste Jam Milk Aluminum Foil Bag Aseptic Filling Machine Big Capacity Box In Bag

Product Details:
Place of Origin: Shanghai
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: international package of your request
Delivery Time: 45days
Payment Terms: L/C, T/T
Contact Now

Fruit Pulp Tomato Paste Jam Milk Aluminum Foil Bag Aseptic Filling Machine Big Capacity Box In Bag

Description
FIilling Capacity: ≤360bags/h Bag Standard: 1-25L
Control System: PLC + Touch Screen Dimension: 4100*1200*2300
Filling Accuracy: ≤±0.5% Power Supply: 380V/50HZ
Product Name: Aseptic Bag Filler Flow Meter: E+H German
Highlight:

Fruit Pulp Aseptic Pouch Filler

,

Tomato Paste Bag Aseptic Filling Machine

,

Aluminum Foil Bag Aseptic Filling Machine

Products Description
Fruit Pulp Tomato Paste Jam Milk Aluminum Foil Bag Aseptic Filling Machine Big Capacity Box In Bag 0
Equipment Characteristics

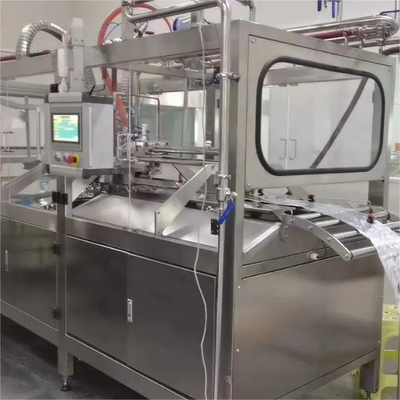

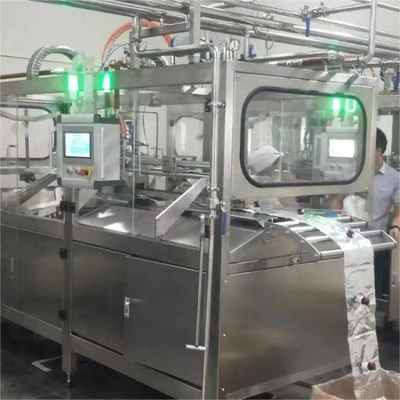

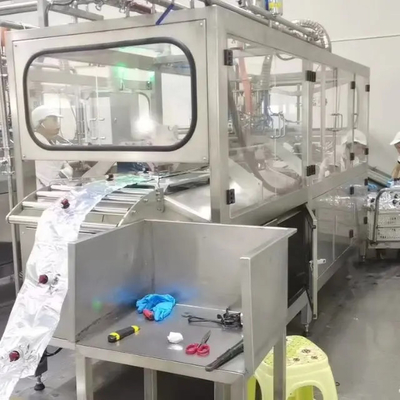

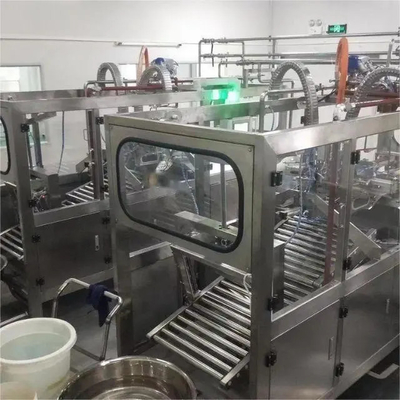

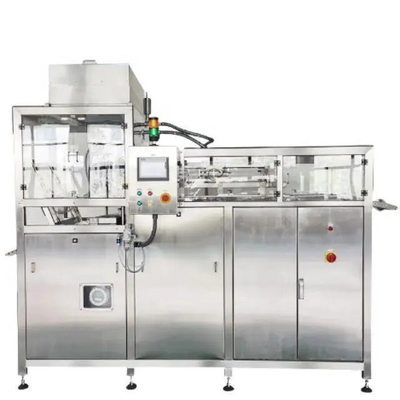

BIB Full Automatic filling machine is a kind of high efficiency and the most compact aseptic bag in box filling machine.

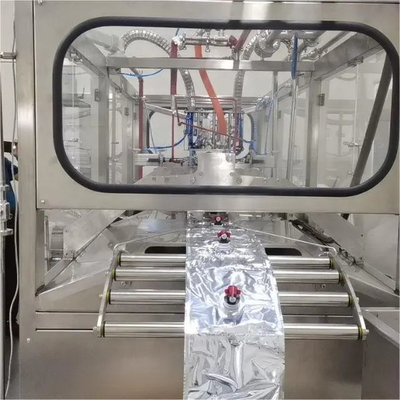

The filling process of uncapping, filling, capping are all finished under aseptic environment .
Steam is the sterilization mode which could prevent products pollution.and steam +detergents sterilization mode when products with low acid.


The moving parts has steam screen protection and the sealed aseptic chamber ensure sterility. It has a complete protection system if low temperature happens



Compact structure,basic devices using German brand products which ensure the reliability of equipment.

There is uncapping confirmation system for filing head. The filling starts when the aseptic cap is pulled out which could avoid aseptic chamber pollution. PLC and touching screen control operation mode with high automatic level and easy operation characteristic, it has function of self diagnosis.



With CIP cleaning function.

Metering with weight or electric magnetic flow meter for 1 inch spout aseptic bags.

Specification
Bagging standard
1-25L
Filling capacity
≤360 bags/H
Filling accuracy
0.5%
Power requirement
380VAC 50HZ 4KW
Compressed air requirement
6-8bar 10m³/H
Food steam
2-4bar 50KG/H
Equipment dimensions
4100*1200*2300mm
Product Paramenters
Fruit Pulp Tomato Paste Jam Milk Aluminum Foil Bag Aseptic Filling Machine Big Capacity Box In Bag 1
Filling Machine Key Components List
PLC
Siemens
Flow meter
E+H German
Low voltage device
Schneider
Temperature sensor
JUMO
Emergency stop switch
SCHLEGEL
Operation button
IDEC
Steam filter
Spirax Sarco
Steam valve
Spirax Sarco
Needle valve
Taiwan
Pilot solenoid valve
SMC
Advantage: The automation performance is more significant;
the labor cost is greatly reduced;
the production efficiency is improved.
Company Profile
Fruit Pulp Tomato Paste Jam Milk Aluminum Foil Bag Aseptic Filling Machine Big Capacity Box In Bag 2
Mango concentrate juice SUS304 Aseptic filling equipment
Our company mainly work for aseptic filler, sterilizer, juice extractor etc fruit processing equipment, all our engineer team work in this process industry with 12 years experience, except single key machine, we could also provide turnkey project solution. We have cooperated with many well-known dairy and beverage processing factories, such as China's Guangming Dairy, Mengniu, Yili, etc.
Our Service
Fruit Pulp Tomato Paste Jam Milk Aluminum Foil Bag Aseptic Filling Machine Big Capacity Box In Bag 3
Service for Mango concentrate juice SUS304 Aseptic filling equipment .
(1)Reply in 24 hours
(2)Providingprofessional solutions
(3)Every product will be tested before the delivery
(4)Delivery on time and excellent after-sale service
(5)High quality, reliable price
Certifications
Fruit Pulp Tomato Paste Jam Milk Aluminum Foil Bag Aseptic Filling Machine Big Capacity Box In Bag 4
FAQ
Q:What products is this equipment usually used for filling?
A:It is mainly used for oil/water/milk/coffee liquid/juice/wine/beer.etc. Q:Can products containing particulate matter be filled? A:Yes, particles cannot exceed 3 mm in diameter Q:What are the advantages of an aseptic filling machine? A:Easy to transport and reduce storage costs.
