AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste

AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste
AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste
AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste

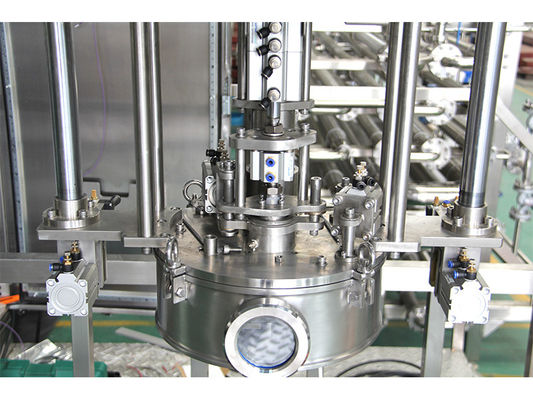

Large Image :  AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste

Product Details:
Place of Origin: China
Brand Name: YGT
Certification: CE
Model Number: YGT-ASG-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiate
Packaging Details: Wooden box/Film packaging
Delivery Time: 40days
Payment Terms: T/T, L/C
Contact Now

AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste

Description
Product Name: ≤±0.5% Filling Error AC380V,50HZ Aseptic Filler For Tomato Paste Power Supply: AC380V, 50HZ
Power Consumpton: ≤0.55KW Place Of Origin: Shanghai,China
Filling Product: Juice, Jam, Water , Wine, Oil Etc Filling Range: 35kg
Filling Speed: 1000-3000 Bag/hr Inlet Pressure: 0.3~0.35MPa
Air Source Pressure: 0.6~0.8MPa Air Consumption: 30kg/h
Highlight:

AC380V Aseptic Filler

,

Tomato Paste Aseptic Bag Filler

,

Tomato Paste Aseptic Bag Filling Machine

≤±0.5% Filling Error AC380V,50HZ Aseptic Filler For Tomato Paste

Product Descripyion



Aseptic Bag In Box China Liquid Filling Machine For Mango Sauce
The filling machine is mainly divided into Aseptic filling machine and Ordinary filling machine .
Aseptic filling machine is specially designed for large volume aseptic bag filling with the feature of small floor space covering, high stability and easy operation. Aseptic filler is widely used in aseptic packaging of liquid such as fruit juice, fruit pulp and jam. At room temperature, the product can be stored for more than one year, saving the cost and risk of cold storage transportation. The aseptic filling machine can be directly connected with the sterilizing machine, and the products after UHT sterilization can be directly filled in the aseptic bag. Aseptic bag is multi-layer aluminum plastic bag, which can effectively isolate sunlight and oxygen and ensure product quality to the maximum extent.



Specification

Power supply AC380V,50HZ
Power consumpton ≤0.2KW
Filling product juice , jam, water , wine, oil etc
Filling range 2kg-30kg Filling speed:200-240 bag/hr (5L)
Filling error ≤±0.5%
Inlet pressure 0.3~0.35MPa
Air source pressure 0.6~0.8MPa
Air consumption 30kg/h
Machine weight 350kg
Machine size 1100*1000*1860mm



AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste 0

Process Flow

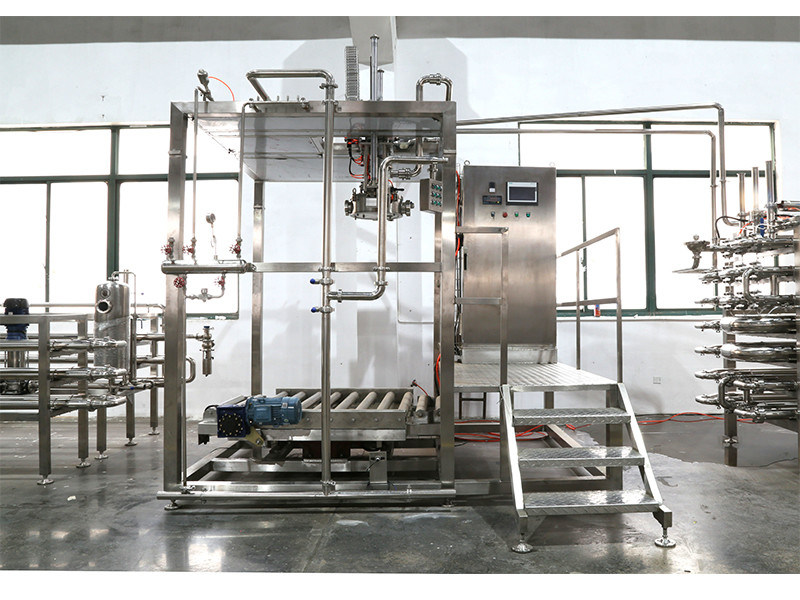

BIB Aseptic Filling Machine

AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste 1

The Bag-in-Box (BIB) Aseptic Filling Machine is designed for aseptically filling spout-prepared aseptic bags with sterile fluids like natural juice, concentrate, vegetable juice, fruit syrup, fruit jam, magma beverage, dairy product and pharmaceutical. The machine can use varous spigots including Vitop and Scholle's. It is designed with CIP (Clean-in-Place) function and a circuit for connecting to a CIP system.

Final product display
AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste 2

Double-head big bag aseptic filling machine
AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste 3
The capacity of the canned aseptic bag of the large-bag aseptic filling machine is larger than that of the BIB aseptic bag. Both the large-bag aseptic filling and the BIB aseptic filling have multiple heads and double heads, and multiple single heads can be connected in series. Many people operate at the same time.

Final product display
AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste 4AC380V 50HZ Aseptic Bag Filling Machine For Tomato Paste 5
