2T/Hr Screw Juicer Machine Food Production Equipment
Specifications for 2T/Hr Screw Juicer Machine Food Production Equipment
| Item Name |
| Production capacity |
1.5 t/h |
| Model |
LZ-1.5 |
| Matched power |
5.5kw |
| Certification |
ISO CE SGS |
| Size |
1580mm(L)440mm(W)1320mm(H) |
| usage |
Fruit and vegetable juice |
Descriptions for 2T/Hr Screw Juicer Machine Food Production Equipment
Spiral Juicing Machine is mainly used for pressing and extracting of fruits and vegetables such as berries, nuts and rhizomes. Spiral Juicing Machine can also be used for pressing and extracting of fruits and vegetables after de nucleation and softening.
Spiral Juicing Machine is mainly composed of motor, frame, front support,pressing screw, combination device of filter screen,juicer, rear support, slag scraping and discharging components. The left end of the press screw spindle is supported in the rolling bearing, the right end is supported in the handwheel bearing seat, and the motor drives spiral juicing machine through a pair of V-belt pulley.
Feature and Advantage for 2T/Hr Screw Juicer Machine Food Production Equipment
• The advantages of energy saving
• Continuous operation
• Full pressure filtration and extremely low juice content of the filtering residue.
Usages for 2T/Hr Screw Juicer Machine Food Production Equipment
Spiral Juicing Machine is mainly used for pressing and extracting of fruits and vegetables such as berries, nuts and rhizomes.
Spiral Juicing Machine can also be used for pressing and extracting of fruits and vegetables after de nucleation and softening.

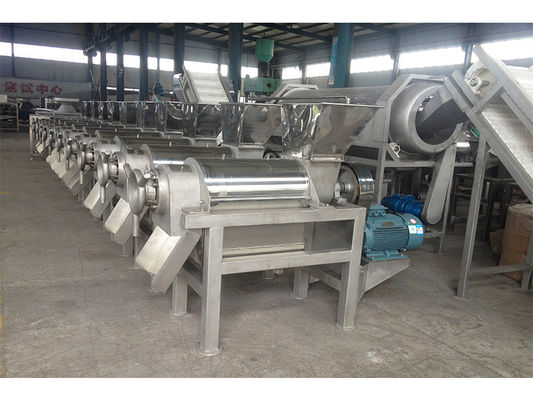

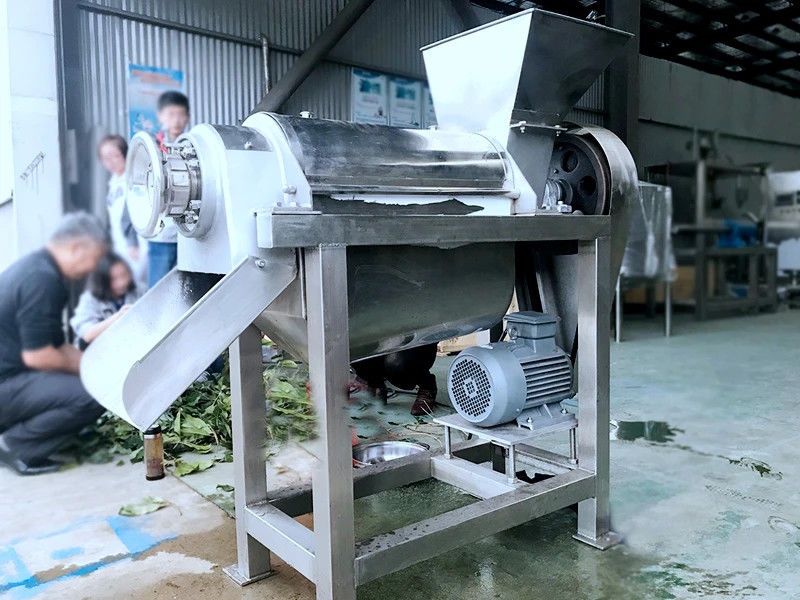

More pictures for 2T/Hr Screw Juicer Machine Food Production Equipment
The main part of Spiral Juicing Machine is the pressing screw. The bottom diameter of the pressing screw gradually increases along the direction of the slag outlet, and the screw pitch gradually decreases. When the material is pushed by the screw, the material is pressed because the volume of the screw cavity on the pressing screw reduces in turn. The rotation direction of the spiral spindle is clockwise from the feed hopper to the slag chute. When the material enters into the feed hopper, it is pressed under the push of the pressing screw, and the squeezed fruit and vegetable juice flows into the juicer at the bottom through the filter screen, while the fruit and vegetable residue is discharged through the gap formed between the pressing screw and the conical part of the pressure regulating head.Changing the size of the clearance can change the juice yield, but if the clearance is too small, under the strong extrusion of the pressing screw, some particles in the slag may be extruded together with the juice through the filter screen. Although the juice yield is increased, the quality of the juice is relatively decreased (pulp and pulp fiber in the juice are relatively increased).The size of slag clearance shall be determined according to the specific production process requirements of customers.
Our Company
Our company mainly work for aseptic filler, sterilizer, juice extractor etc fruit processing equipment, all our engineer team work in this process industry with 12 years experience, except single key machine, we could also provide turnkey project solution. We have cooperated with many well-known dairy and beverage processing factories, such as China's Guangming Dairy, Mengniu, Yili, etc.
Service for 2T/Hr Screw Juicer Machine Food Production Equipment
(1) Reply in 24 hours
(2) Providing professional solutions
(3) Every product will be tested before the delivery
(4) Delivery on time and excellent after-sale service
(5) High quality, reliable price
Certification
FAQ
1. Who are we?
We are based in Shanghai, China, start from 2006,sell to Mid East(15.00%),Eastern Asia(15.00%),Western Europe(12.00%),North America(10.00%),Africa(10.00%),Southeast Asia(10.00%),Northern Europe(6.00%),South America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South Asia(4.00%),Southern Europe(3.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
sterilization machine,pasteurizer machine,heat exchange,CIP system,filling machine
4. Why should you buy from us not from other suppliers?
1. update the technology every year, and with many sole patent 2. choose top international brand for as material and part, to guarantee equipment steady 3. long term available for spare parts like sealing and gasket
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese,German,French,Korean,Italian
Your message must be between 20-3,000 characters!
