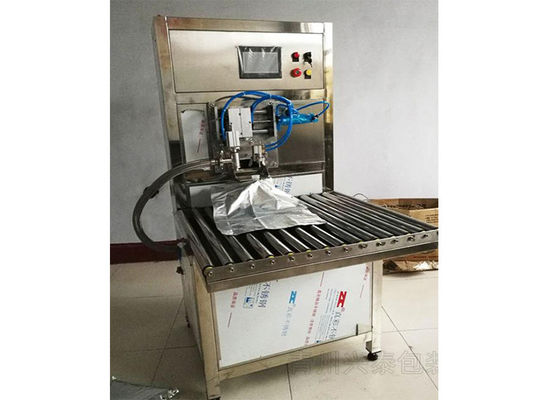

30L/H SUS304 Bag In Box Filling Machine For Prickly Pear Juice
1. Descriptions for Bag In Box Filling Machine
Automatic bag-in-box filling machine is researched and developed by our company according to market demand. Adopt flow meter to measure, integrate electric and pneumatic design, use compress air which is clean, energy-saving, environmental protection as power. BIB Filling machine with new design, compact structure, beautiful appearance, quantitative filling, stable and durable performance, high automation, simple operation, easy maintenance etc. Apply to fill edible oil, wine and other liquid.
2. Specifications for Bag In Box Filling Machine
| Name |
30L SUS304 BIB Filling Machine for Prickly Pear Juice |
|
Power supply
|
AC220V 50HZ
|
|
Power
|
0.4KW
|
|
Air source
|
0.6m³／min. 0.6-0.8 Mpa
|
|
Filling range
|
1~30L
|
|
Accuracy
|
±1%
|
|
Filling temperature
|
Normal filling temperature
|
|
Capacity
|
180-200bags/h when filling 5L
|
|
Dimension
|
1000LX650WX1400H(mm)
|
|
Weight
|
110 Kg
|
3. Production Process for Bag In Box Filling Machine
clamp bag→ clamp lid→ pullout lid→ screw lid→ filling chamber lifting→ filling valve lifting→ air cylinder lifting, etc.
-
When the filling Machine is in running, insert the bag mouth into the filling slot to ensure that the bag mouth is in place.
-
The initial position of the left and right sliding parts is on the right. During operation, the lifting cylinder is pressed down to the clamping cap, the capping head clamp the cap, then pull out the cap.
-
Slide cylinder to the left position, press the lifting cylinder down to the filling position, put the filling head in position and insert it into the bag mouth for vacuuming and filling.
-
After filling, the mechanism rises and moves to the right, and then press down to completely press the cap into the mouth of the bag.
4. Usages for Bag In Box Filling Machine
Application for Ginger Juice 240bags/H 30L BIB Filling Machine.
Apply to fill edible oil, wine, water and other liquid.
5. More pictures for Bag In Box Filling Machine
Company Profile
Bag In Box Filling Machine
Our company mainly work for aseptic filler, sterilizer, juice extractor etc fruit processing equipment, all our engineer team work in this process industry with 12 years experience, except single key machine, we could also provide turnkey project solution. We have cooperated with many well-known dairy and beverage processing factories, such as China's Guangming Dairy, Mengniu, Yili, etc.
Our Service
Service for Bag In Box Filling Machine
(1) Reply in 24 hours
(2) Providing professional solutions
(3) Every product will be tested before the delivery
(4) Delivery on time and excellent after-sale service
(5) High quality, reliable price
