Product Details:
|
Name: | Semi-Automatic 500L/H Honey Bag In Box Filling Machine | Filling Range: | 1-30L |
---|---|---|---|
Filling Speed: | 220-240bags/h(For 3L) | Power: | ≤ 0.4KW |
Air Consumption: | 0.6m³/min | Size: | 1000LX650WX1400H(mm) |
Highlight: | 500L/H Bag In Box Filling Machine,Bag In Box Filling Machine 0.4KW,Honey BIB Filling Machine |
Semi-Automatic 500L/H Honey Bag In Box Filling Machine
1. Descriptions for Semi-Automatic 500L/H Honey Bag In Box Filling Machine
Automatic bag-in-box filling machine is researched and developed by our company according to market demand. Adopt flow meter to measure, integrate electric and pneumatic design, use compress air which is clean, energy-saving, environmental protection as power. BIB Filling machine with new design, compact structure, beautiful appearance, quantitative filling, stable and durable performance, high automation, simple operation, easy maintenance etc. Apply to fill edible oil, wine and other liquid.
2. Specifications for Semi-Automatic 500L/H Honey Bag In Box Filling Machine
Name | Beer 30L SUS304 BIB Filling Machine |
Power supply |
AC220V 50HZ |
Power |
0.4KW |
Air source |
0.6m³/min. 0.6-0.8 Mpa |
Filling range |
1~30L |
Accuracy |
±1% |
Filling temperature |
Normal filling temperature |
Capacity |
220-240bags/h when filling 3L |
Dimension |
1000LX650WX1400H(mm) |
Weight |
110 Kg |
3. Production Process for Semi-Automatic 500L/H Honey Bag In Box Filling Machine
clamp bag→ clamp lid→ pullout lid→ screw lid→ filling chamber lifting→ filling valve lifting→ air cylinder lifting, etc.
When the filling Machine is in running, insert the bag mouth into the filling slot to ensure that the bag mouth is in place.
The initial position of the left and right sliding parts is on the right. During operation, the lifting cylinder is pressed down to the clamping cap, the capping head clamp the cap, then pull out the cap.
Slide cylinder to the left position, press the lifting cylinder down to the filling position, put the filling head in position and insert it into the bag mouth for vacuuming and filling.
After filling, the mechanism rises and moves to the right, and then press down to completely press the cap into the mouth of the bag.
4. Usages for Semi-Automatic 500L/H Honey Bag In Box Filling Machine
Application for Ginger Juice 240bags/H 30L BIB Filling Machine.
Apply to fill edible oil, wine, water and other liquid.

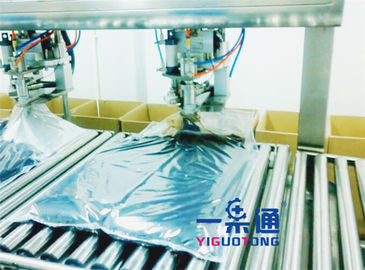

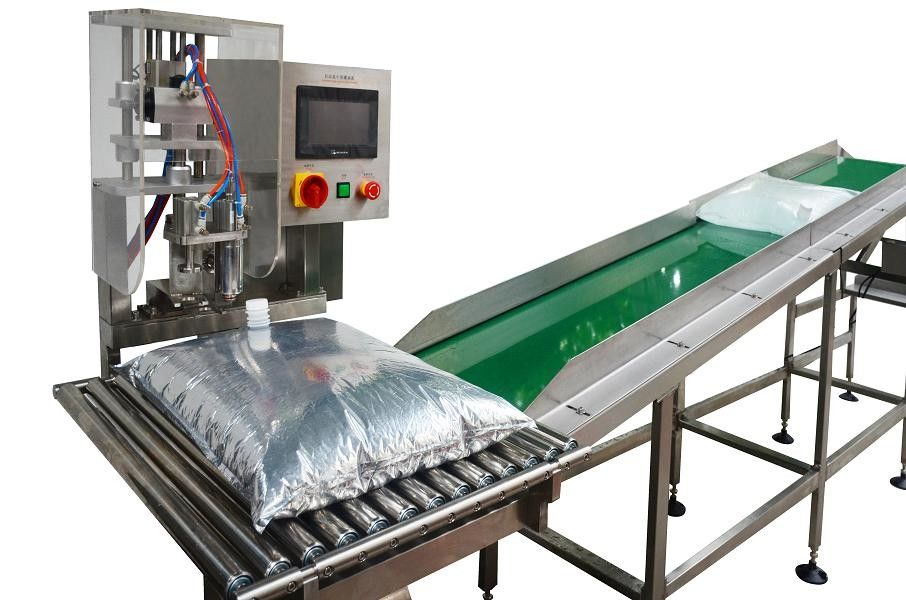

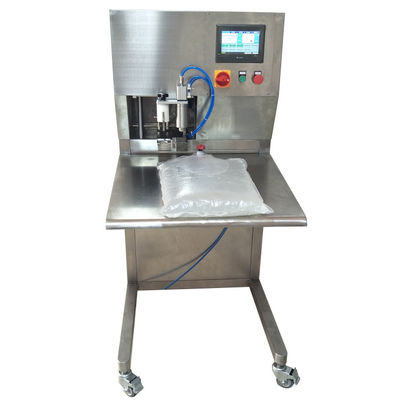

5. More pictures for Semi-Automatic 500L/H Honey Bag In Box Filling Machine
