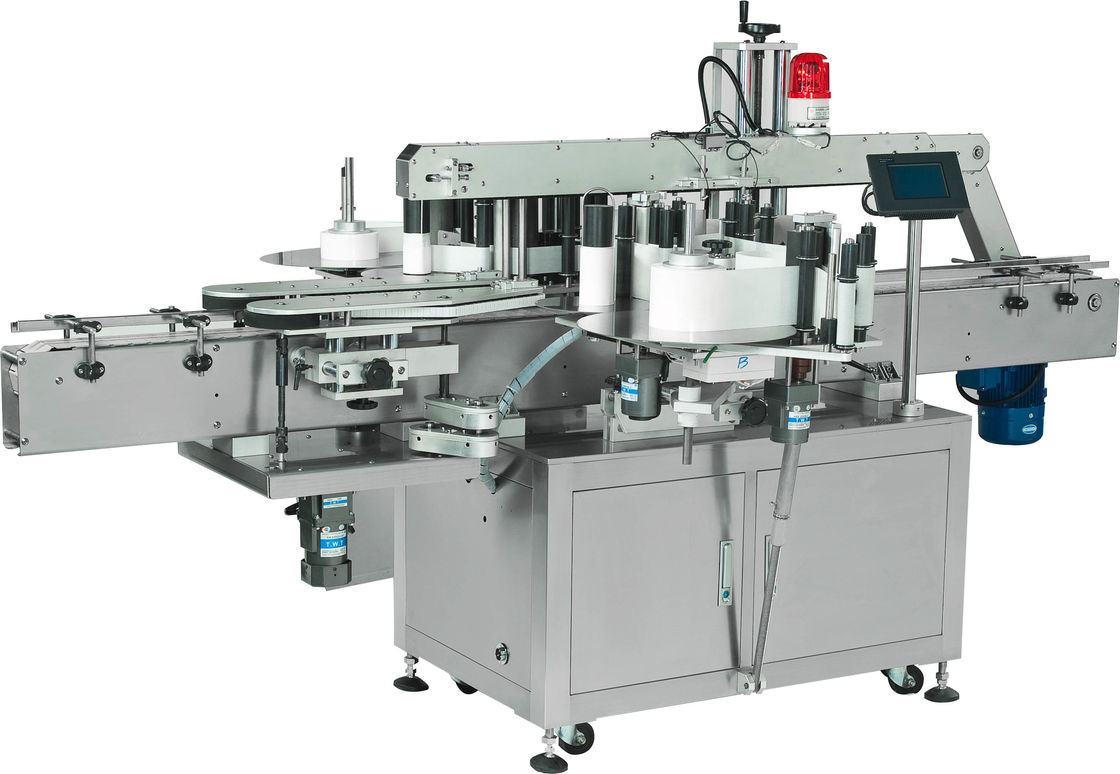

Technical introduction:
Equipment features:
■ Can be attached to one side of round bottles, one side of square bottles, two sides, three sides, one side of
flat bottles (such as shampoo, shower gel, cooking oil, lubricating oil, lotion, eye drops, etc.) . It has a wide range
of application and strong adaptability.
■ Synchronous chain calibration mechanism ensures smooth and accurate calibration.
■ Screw adjusting and pressing mechanism, precise action, wide adjustment range, can be adapted to a variety of bottles.
■ No sticking when sticking transparent labels, no crumpling of self-adhesive labels.
The biggest advantage:
■ Using Japanese servo motor, the speed is extremely high and the stability is excellent.
■ High precision, transparent label does not foam; can be attached to a variety of containers on single, double,
three sides, a wide range of applications.
Technical Parameters:
■ Voltage specification: AC220 / 380V ,50 / 60HZ
■ Power consumption: 3KW
■ Labeling speed: 30-100 bottles / min
■ Labeling accuracy: plus or minus 1 mm (except for the error between the object and the label itself)
■ Applicable container range: length 15-150 mm, width 10-100 mm, height 40-350 mm
■ Applicable label supply: height 15-180 mm, length 10-200 mm
■ Maximum label supply: diameter 420 mm, paper roll inner diameter 76 mm
■ Label spacing: 3-4 mm
■ The distance between the top and bottom of the label and the top and bottom of the backing paper: 2 mm
FAQ
Q1: Are You A Factory Or A Trading Company?
We Are A Factory Specializing In The Production Of Bottle Sticker Labeling Machine
Q2: How Long Is The Delivery Date?
The Delivery Date Is About 15-40 Working Days
Q3: What Is Payment Term?
Deposit 30% In Advance And 70% Before Shipment The Machine.
Q4: How Can You Guarantee Quality?
1, We Will Test Strictly After The Machine Is Completed
2, Our Machine Are Certified By SGS
3, Our Different Workers Are Responsible For Different Production Processes To Ensure That Everyone'S Work Is In Place
4, We Have Our Own Inspection Team. The Inspectors Will Operate And Test After The Machine Is Completed
5, So Far, Our Company Has Not Had A Single Quality Complaint, And The Customer Satisfaction Is 100%
Q5: How Can I Know Your Machine Is Designed For My Product?
You Can Send Us Samples Of Your Product And We Test It On Machine,And Take Care Of Your All Needs
Q6: Is There Any Installation Direction After We Received The Machine?
Yes, Of Course,And We Have A Professional Technical Team And Warm After Service.
And We Can Solve Any Problem You Meet During The Installation And Packing Production In Time.
