mango processing line Product overview:
Our high quality custom mango juice processing machines and mango pulp production plants are designed to meet the growing demand for fresh juice, pulp, puree and other mango products. These lines are ideally suited for large-scale mango processing, ensuring high throughput, excellent product quality and efficient operations. The machine features SUS304/SUS316 stainless steel construction, which offers excellent durability, corrosion resistance and food safety compliance, making it ideal for food grade applications. The line can be customized to meet a variety of production capabilities and product requirements.

mango processing line Main features:
High-quality stainless steel structure (SUS304/SUS316): Made of food-grade stainless steel to ensure that all equipment meets hygienic standards and is rust-proof and corrosion-resistant.
Completely customized solutions: Tailor-made designs to meet your processing needs, from small plants to large industrial plants with adjustable production capabilities.
Automated control: The production line is equipped with advanced PLC (programmable logic controller) for precise control, minimizing human errors and maximizing efficiency.
High-quality mango processing: Advanced mango juice extraction, pulp separation, pasteurization, homogenization, and packaging technologies provide high-quality products.
Energy efficient and low maintenance: Designed to reduce energy consumption while minimizing maintenance costs, ensuring optimal performance over time.

mango processing line technical parameters



mango processing line pictures

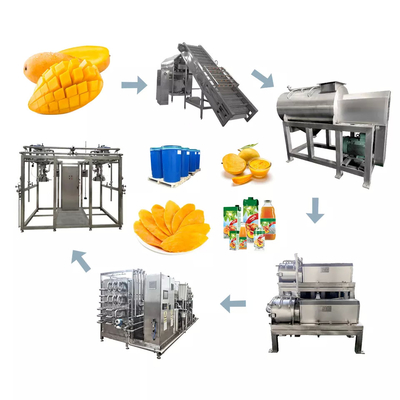

mango processing line Key processing stages:

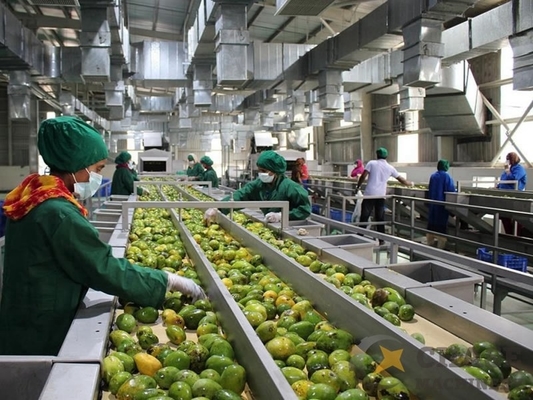

Mango sorting and cleaning:
Function: Sorts fresh mangoes according to size and quality, removing damaged or unripe fruits. The washing process removes dirt, pesticides and other impurities.
Equipment: automatic sorting conveyor, rotary cleaning machine, brush cleaning machine.
The result: clean, high-quality mangoes ready for the next stage.
Peel and core the mango:
Function: Peel and core the mango, extract the seeds, and leave the edible mango pulp.
Equipment: Mango peeling machine, automatic corer, efficient peeling system.
Result: Clean mango pulp, without skin and seeds, ready for pulp extraction.

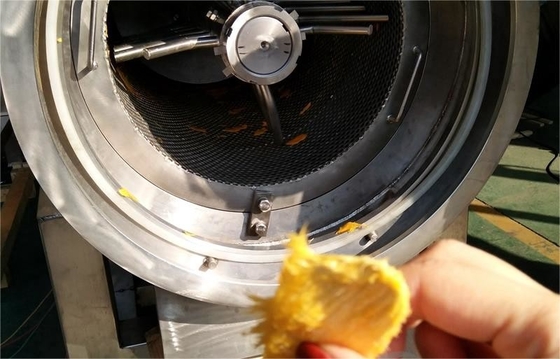

Mango pulp extraction:
Function: Process clean mango pulp to extract the pulp, separating it from the fiber and any remaining peel or seed fragments.
Equipment: Mango pulp extractor, fiber separator and homogenizer.
The result: smooth and consistent mango pulp for juice or puree production.
Mango juice production:
Function: Mango pulp is mixed with water and sugar (if required) and then pasteurized to remove harmful bacteria, ensuring product safety and extending shelf life.
Equipment: Juice mixing tanks, pasteurizers, homogenizers and filtration systems.
Features: Homogenization ensures smooth juice, pasteurization ensures microbial safety without affecting flavor.
Mango puree or concentrate production:
Function: For purees or concentrates, the pulp undergoes additional processing, including concentration to remove excess water.
Equipment: Mango puree concentrator, evaporator, filtration equipment.
The result: high-quality mango puree or concentrate for a variety of food and beverage applications.
package:
Function: After processing, mango juice, pulp or puree is packaged into bottles, cartons or bags for retail or industrial use.
Equipment: filling machines, vacuum sealers, labeling systems and packaging conveyors.
Features: Automatic filling and sealing ensures precise volume and hygienic packaging, extending shelf life.

Main advantages of mango processing line:
High efficiency, high output: This production line is designed to maximize the yield of each mango, reduce waste and ensure high productivity.
Customizable Capacity: Whether your processing capacity is 500L/H or 30,000L/H, the processing line can be customized to meet your specific needs.
Precise automation: Using advanced PLC control, the entire process is automated to ensure stable quality and reduce labor costs.
Food safety material: SUS304/SUS316 stainless steel is used to ensure that the equipment meets the highest hygiene standards and is suitable for food and beverage production.
Scalable: Suitable for both small and large-scale operations, with the flexibility to adjust output as needed.
Low Maintenance: Easy to clean and minimizes downtime, ensuring long-term durability and reliability.

mango processing line application:
Mango Juice: Fresh natural mango juice for bottling and distribution.
Mango Pulp/Pure: Puree for sauces, desserts, ice cream, smoothies, etc.
Mango concentrate: For export, used in the production of juices and condiments.
Mango puree and jam: Mango puree for cooking and jam for retail packaging.

Why choose our mango processing line?
Turnkey Solutions: We offer complete, integrated mango processing solutions from sorting to packaging, eliminating the need to purchase
separate equipment.
Expert customization: Each production line is designed specifically for your unique requirements, ensuring optimal processing and maximum efficiency.
International Quality Standards: Our equipment complies with global food safety and quality standards, including certifications such as CE, ISO and SGS.
After-Sales Support: We provide comprehensive installation, training and technical support to ensure smooth operation and long-term performance.

mango processing line Specification:
Processing capacity: 1000L/H to 30,000L/H (can be customized)
Structural material: SUS304/SUS316 stainless steel (food grade)
Control system: Siemens PLC, precise control
Power supply: 380V, 50Hz (can be customized according to location)
Certification: CE, ISO
Warranty: 12 months (optional extended service plan)

mango processing line in short:
High-quality customized mango juice processing machines, mango/mango pulp production equipment and mango processing lines adopt SUS304/SUS316 stainless steel structures to provide durable, efficient and hygienic solutions for the production of mango juice, pulp, puree and other mango products. Whether you are processing mangoes into juice, jam, sauce or concentrate, our systems deliver high-quality output with minimal waste and maximum efficiency.
Contact us today to discuss your processing needs and get a custom solution that meets your production goals!
