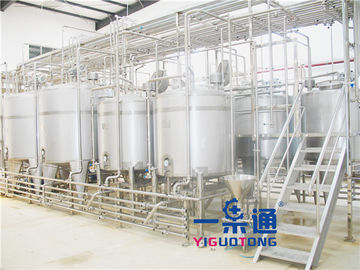

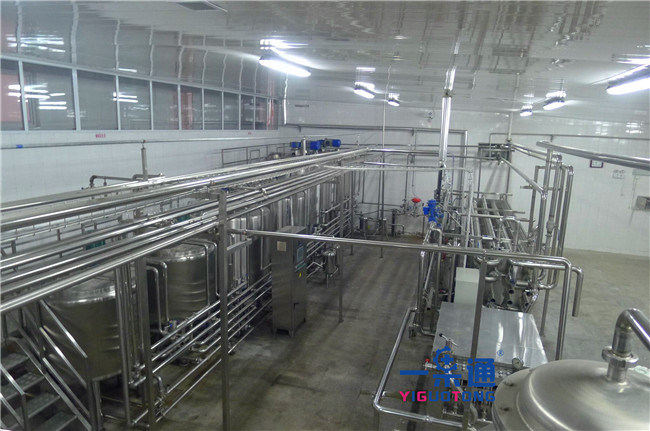

Concentrated Jam Blending Production Line

Juice Pasteurizing units/pots or equivalent (jacket kettle)

VOLUME: 1000L

Double jacketed batch stainless SUS304 kettles/ boilers with closed water circuit.

Quick emptying U bottom sloping towards the large outlet.

With agitator peddle and speed regulation options, LCD temperature controls, CIP mechanism

- Juice/Milk pasteurizer, Vertical jacketed & insulated tank with propeller type of agitator,

Power: 5.5 KW or higher, stainless steel 304, 220/50Hz

- Availability of spare parts and after sales services

VOLUME: 2000l

Stainless steel SUS304 with volume evaluation strips, float valve, sampling tap and room for sedimentation

Stainless Food grade steel, with stand, base discharge point, light weight, Vertical

VOLUME: 1000l

Stainless steel SUS304 with agitators and speed adjustment options

25mpa, 11kw

With horses - 2 stage (2-chamber) filtration system of 15 and 10 microns. included, 10 and 15 microns filters

- 3-phasepower; capacity; Easy to maintain; Volume transfer / yield minimum 1500l/hr.

- Impeller diameter at least 6” (inches)

Fully Automatic bottle filling and capping machine

(6000B/H, 18-18-6)

• Low maintenance; Easy to use control display panel / or LCD. Capping screw cap,
  - Non-forming / pneumatic filling machine/mechanism.
• Hot filling;
  - Speed: 100 bottles per minute (speed adjustable) filling accuracy+-1%, non drip, volume adjustable, conveyor.
  - Volume range: 200-1000ml;
• capping accuracy >99%
  - Where applicable with relevant compressor. SUS304 for contact parts.
  - Capping capability: automatic cap pickup, vibratory bowl able to hold at least 200cups;
  - Adjustable height so that pickup of caps is done smoothly.
  - 3-phase power operated.
